Connect Azure VM using the native RDP client through Bastion

Mar 6, 2026 · 2 min read · bastion ·

Share on:

Connect directly to your Azure virtual machines using the native RDP client through Bastion.

Introduction

Azure Bastion is a fully managed PaaS service that provides secure and seamless RDP/SSH connectivity to your virtual machines directly over TLS from the Azure portal, or via the native SSH or RDP client already installed on your local computer.

Official documentation is available here: https://learn.microsoft.com/en-us/azure/bastion/bastion-overview

Native client support is a feature in Azure Bastion, which allows users to use native SSH and RDP programs to connect to Bastion instead of using the Azure Bastion web interface.

Prequisites

Azure Bastion deployed

Note

Native client support must be enabled on Bastion to create the tunnel.

Azure Bastion Native Client Support

Instead of logging in through the Azure Portal, Azure Bastion now allows users to connect using their native RDP or SSH clients.

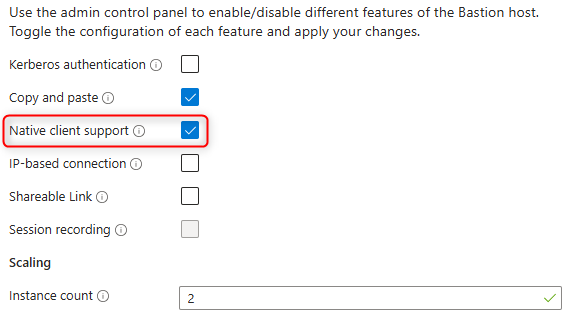

Go to Bastion --> Settings --> Configuration --> Native client support.

Create the RDP tunnel

Open a terminal:

1az login --tenant <your_tenant_id> --use-device-code
2az account set --subscription <your_subscription_id>

Define your variables to target the VM to connect to:

1$BastionName = "bstbga01"
2$BastionRG = "rg-bst"
3$TargetVmResourceId = "/subscriptions/xxx-xxx-xxx-xxx/resourceGroups/rg-vm/providers/Microsoft.Compute/virtualMachines/vmapp001"

Note

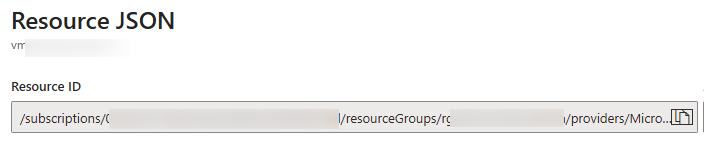

To get the VM resoure Id go to:

Virtual machines --> Select Your VM --> Overview --> JSON View --> Copy the Resource ID.

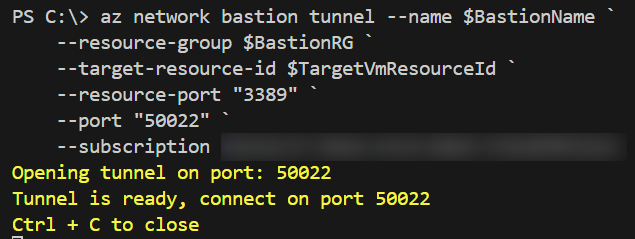

Create the tunnel:

1az network bastion tunnel --name $BastionName `
2    --resource-group $BastionRG `
3    --target-resource-id $TargetVmResourceId `
4    --resource-port "3389" `
5    --port "50022" `
6    --subscription xxx-xxx-xxx-xxx
